Won Ji Aluminium Foil Containers A reliable Choice
Environmentally safe, functional, light, cheap, retaining the fullest senses of taste and smell, usable both for deep- freeze and cooking application ; these are the most significant advantages that our Aluminium Foil Container offers for food packaging.
Won Ji has a range of more than 200 containers in variety of shapes, edges, sizes specifically to meet any requirement. In addition to Aluminium Foil Containers, Won Ji has a wide range of complementary products for Food Packaging and Preservation.
These include Al-foil reels for closing, folding, heat-sealing and printing.
Lids in flat and Preformed Al-foil or Foil Board Laminated.
Won Ji has a range of more than 200 containers in variety of shapes, edges, sizes specifically to meet any requirement. In addition to Aluminium Foil Containers, Won Ji has a wide range of complementary products for Food Packaging and Preservation.
These include Al-foil reels for closing, folding, heat-sealing and printing.
Lids in flat and Preformed Al-foil or Foil Board Laminated.
Won Ji Aluminium Foil Containers's Features
01. Rational production
Aluminium foil containers make it possible to pack the products at very early stage of the production, whereafter products and container accompany each other up to the moment when the products has been consumed.This make a very rational production and distribution and distribution possible. And it makes a number of things easier for the final consumer. Here is a short survey of the process your products can go through "dressed" in an Aluminium Foil Container.
- - preparation / roasting / baking
- - freezing
- - sterilization / autoclaving
- - closing / sealing
- - marking/decoration / consumer information
- - packing
- - distribution
- - storing
- - display / stacking / sale
- - keeping-possibly in the freezer
- - re-heating in the oven
- - serving / consumption
02. High heat resistance
Aluminium foil containers go completed unaffected through the highest oven temperature and the lowest frost degrees. These temperature qualities make aluminium specially well suited for the food industry.03. Fine barrier qualities
In itself aluminium is completely neutral material. It has neither smell nor taste,and it does not absorb oxygen, moisture, fat, flavour or aroma substances.These qualities give aluminium foil container a built-in resistance to corrosion, which can be further enhances by lacquering. Another effect of thews qualities is that the container constitutes an impervious barrier between the products and its surroundings. Thus the container provides an effective protection against bacteria and light. And it prevents the product from giving off or absorbing moisture, taste, and aroma.04. Innumerable type of containers
The greatest advantage of the Aluminium Foil Container is that it can be tailored for the product in each individual case. Through choice of from, thickness, alloy, shape of edge, closing method, lid and decoration it is possible to adapt the appearance and qualities of the container meet exactly the demand of the products.You are not - as in the case of most of the other packaging - bound by a standard shape.
05. Easy and economical handling
The aluminium container weights next to nothing, and is therefore easy to handle. It will nearly always have a conical shape so that it is easy to stack and stands steadily. And finally, both weight and shape make it easy to pack in cartons, which are prepared for direct display on the shelf or refrigerated counter.06. A presentable apparence
Few packings makes so many things easier for the consumer in the daily housekeeping :It is easy to carry home. The product does not have to be unpacked. It is can be kept in the packing. Frozen in the packing. heated in the packing. In this way, you can save both the cleaning of the oven, washing-up lf products plates, bowls, and dishes.
The container is easy to open. You need neither scissors nor tin-opener, and you won't cut yourself. It is also easy to close again, if the contents are not fully used. And finally, it is easy to dispose of, when the products has been consumed. It can be crumpled up to nothing.
Disposable aluminium foil container

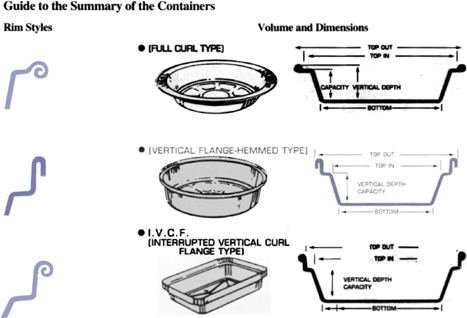

rectangular containers with full curltype
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
101 | 460*388/425*302 | 68 | 7300 |
 |
102 | 327*262/300*235 | 66 | 3600 |
 |
114 | 327*200/312*284 | 33 | 1550 |
 |
117 | 263*190/250*180 | 11 | 300 |
 |
120 | 200*170/183*153 | 31 | 730 |
 |
121 | 198*150/186*137 | 35 | 730 |
 |
124 | 195*144/182*132 | 35 | 710 |
 |
129 | 189*125/175*125 | 28 | 430 |
 |
133 | 164*105/150*90 | 27 | 290 |
 |
134 | 130*104/115*90 | 26 | 220 |
 |
142 | 97*72/83*57 | 30 | 85 |
 |
151 | 214*112/201*100 | 55 | 870 |
 |
155 | 312*85/298*71 | 48 | 750 |
rectangular containers with vertical flange-hemmedtype
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
301 | 159*102/147*90 | 31 | 330 |
rectangular containers interrupted vertical curlflagtype
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
211 | 230*176/215*160 | 25 | 270+230+135 |
 |
231 | 214*92/201*78 | 37 | 480 |
 |
233 | 145*121/129*107 | 34 | 365 |
 |
235 | 117*117/103*103 | 35 | 290 |
rectangular containers withfull curltype
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
402 | 292/274 | 22 | 120 |
 |
404 | 270/240 | 19 | 730 |
 |
406 | 245/220 | 30 | 850 |
 |
407 | 240/230 | 16 | 520 |
 |
409 | 230/210 | 19 | 530 |
 |
412 | 215/195 | 20 | 480 |
 |
414 | 200/180 | 19 | 360 |
 |
416 | 180/155 | 19 | 260 |
 |
421 | 130/116 | 18 | 110 |
 |
424 | 110/94 | 21 | 90 |
 |
426 | 100/85 | 17 | 60 |
round deep containers withfull curl type(gastronom)
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
472 | 203/185 | 150 | 1000 |
 |
477 | 203*178/161 | 39 | 600 |
 |
482 | 144/127 | 41 | 325 |
 |
483 | 145/128 | 42 | 360 |
 |
486 | 85/76 | 57 | 190 |
cover lid
| IMAGE | CODE NO | TOP OUT | COVER LID FOR |
 |
L301 | 164*110 | 301 |
 |
L124 | 207*158 | 124 |
oval shape containers with full curl type
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
601 | 470*352/435*317 | 86 | 7700 |
 |
631 | 428*287/401*261 | 31 | 1400 |
 |
632 | 350*246/325*225 | 23 | 850 |
 |
651 | 107*62/96*53 | 15 | 35 |
oval shape containers with interrupted vertical curl type
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
652 | 80*65/73*57 | 23 | 60 |
 |
721 | 195*125/177*110 | 46 | 570 |
gas mats
| IMAGE | CODE NO | TOP OUT / TOP IN | CENTER HOLE DIA | RIM STYLE |
 |
801 | 193/170 | 95 | Full curl |
 |
802 | 193 | 95 | No curl |
 |
803 | 230/210 | 114 | Full curl |
 |
804 | 230 | 114 | No curl |
 |
805 | 288*210/274*194 | 88 | Full curl |
cake trays with no edge treatment
| IMAGE | CODE NO | TOP OUT / TOPIN(mm) | VERTICAL DEPH(mm) | CAPACITY(ml) |
 |
903 | 95 | 26 | 120 |
 |
905 | 95 | 22 | 100 |
 |
907 | 85 | 41 | 125 |
 |
909 | 56 | 29 | 45 |
 |
912 | 50 | 21 | 15 |
 |
942 | 70*40 | 27 | 35 |
